The exceptionally solid, industrial corner rounding and hole punching machine for sign makers that provides more than 4 tons of punching power!
This versatile tool offers a wide range of signboard finishing options, changeable within a single base unit in seconds. Enhance your production capabilities, offering more finishing options for your customers and higher quality finished products.
Capable of rounding up to 40mm radius corners, and punching up to 10mm diameter holes at the fraction of the cost and a fraction of the space of other machines providing similar offerings.
Configure your PowerPunch to your individual needs, adding to your collection of dies as and when you need them.
Suitable for use with aluminium, aluminium composite, brass, copper, and steel as well as plastic sign making materials such as PVC foam board and corrugated plastic.
MODULES AVAILABLE FOR THE POWERPUNCH SYSTEM:

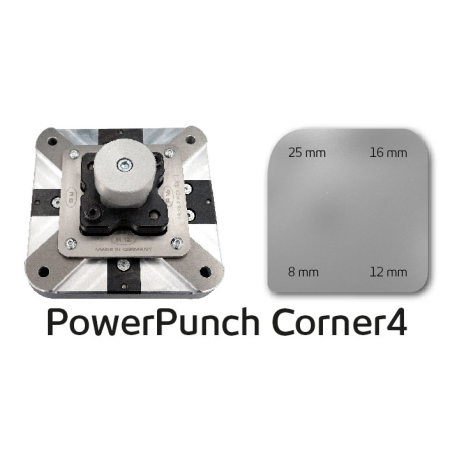

PowerPunch Corner 4
- 4-in-1 die with 8mm, 12mm, 16mm and 25mm radius options - simply turn the plate to change the radius
- Best for smaller sign panels
- Punches aluminium (up to 3mm), aluminium composite (up to 5mm), copper (up to 2.5mm), brass, steel & stainless steel (up to 1.5mm) and plastics
- Maximum insert opening 5mm
PowerPunch Corner R3035
- 2-in-1 die with 30mm and 35mm radius options - simply turn the plate to change the radius
- Best for large panels or road signs
- Punches aluminium (up to 1.5mm), aluminium composite (up to 4mm), copper (up to 3mm), brass, steel & stainless steel (up to 1.5mm) and plastics
- Maximum insert opening 5mm
PowerPunch Corner R40
- 40mm radius die
- Punches aluminium (up to 1.5mm), aluminium composite (up to 5mm), copper (up to 2.5mm), brass, steel & stainless steel (up to 1mm) and plastics
- Maximum insert opening 5mm

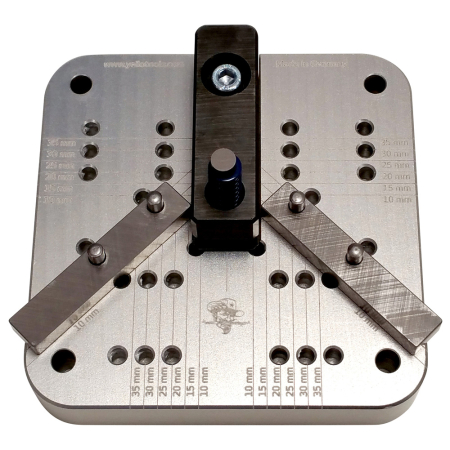

PunchPunch Hole Insert
- Intelligent system that allows different hole positions and spacing
- Punches aluminium (up to 3mm for 6, 8 & 10mm, or 2mm for 4mm dia), copper or aluminium checker plates up to 2mm thick, aluminium composite up to 4mm thick and brass, steel & stainless steel up to 1.5mm thick
- Available with a 4mm, 6mm or 8mm diameter punch
- Maximum insert opening 5mm

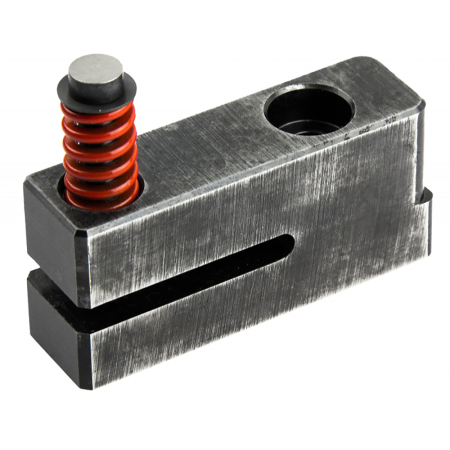

PowerPunch Hole Exchange
- Add on module for the PowerPunch Hole Insert that allows you to exchange the diameter hole punch dies in the PowerPunch
- Hole Insert without needing to invest in a whole new base set
- Available with a 4mm, 6mm, 8mm or 10mm diameter punch
