PunchPro Adjustable Hole Punch

Inspired by the Corner Pro 4, this versatile new PunchPro punch allows you to not only punch holes in the corners of your boards but also at any point along the edge! Not only this, but both the distance from the edge or corner to the centre of the hole is adjustable, allowing you to punch consistent, accurate holes effortlessly in every panel with no need to keep remeasuring.

The PunchPro works well with aluminium, dibond, formica, laminate, veneers, magnet, rowmark applique or sheet metal. A choice of 3mm, 4.5mm, 6mm or 8mm diameter hole punches are available.

This hole punch will out-perform any other punch on the market for a fraction of the cost! It features a heavy duty, powder coated steel base with a cam operated lever action and hardened steel cutters with hardened anodised aluminium bodies for a long life.

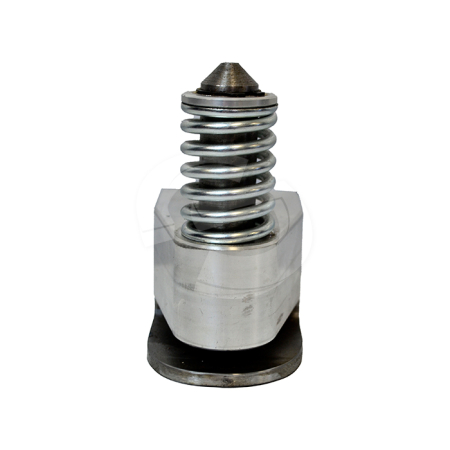

Its dies are can be changed within seconds, minimising downtime on any job.

Adjustable guide blocks have 4 pre-set positions in from the sides and corners which relate to the position of the hole in relation to the edge or corner of the board to the centre of the hole. These are pre-set to 12mm, 16mm, 20mm or 24mm. You can use packers to adjust these pre-set positions further if required.

Suitable for punching;

• Up to 3mm diameter holes in 3mm aluminium
• Up to 4.5mm holes in 0.5mm brass, 3mm flexible plastics and dibond
• Up to 6mm diameter holes in 0.5mm brass, 3mm flexible plastics and dibond
• Up to 8mm diameter holes in 0.5mm brass, 3mm flexible plastic and dibond

Base and dies supplied separately - add your base and select your dies!
